Titleblocks

Floor Plan Title Blocks

Title blocks are paper size which floor plans can be printed on.
OSIS comes with default paper sizes that help client get setup quickly.

Creating Floor Plan Title Block

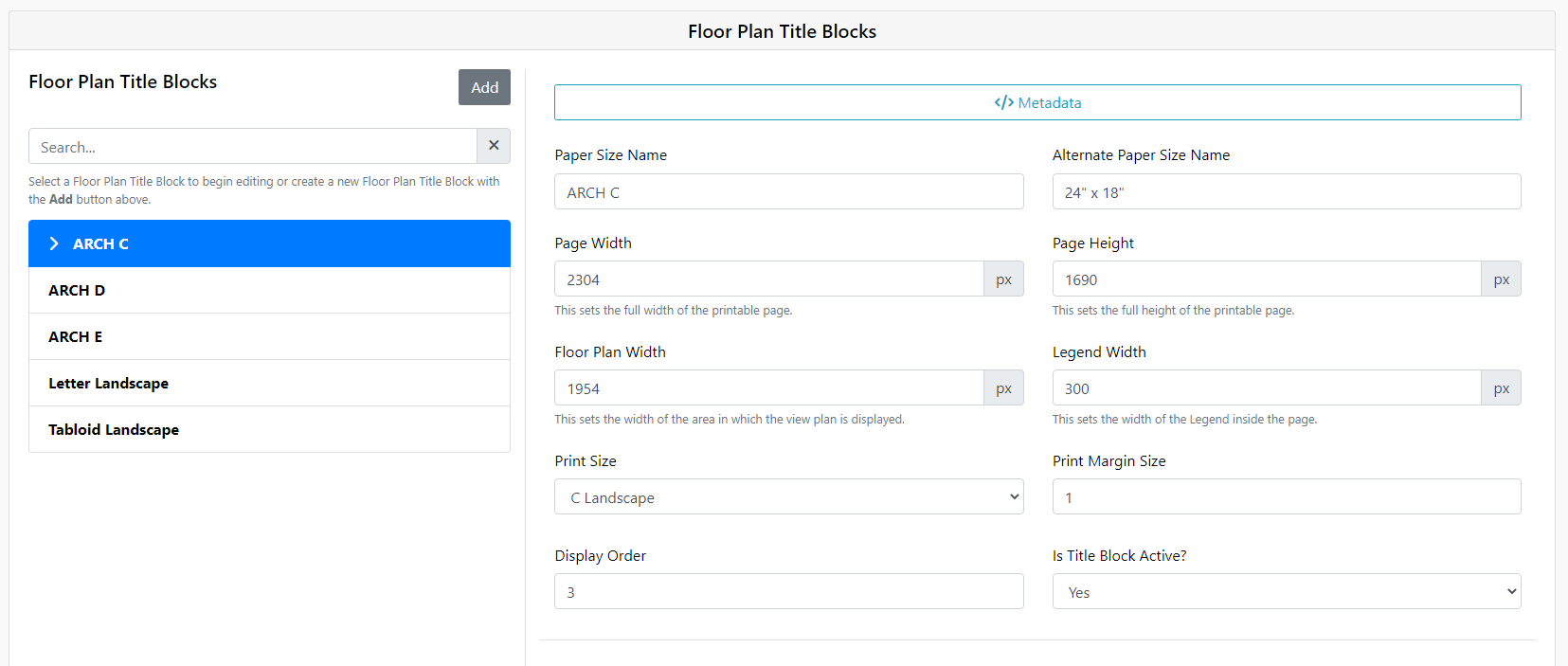

Open the OSIS Admin page (/osis/admin/) and scroll down to the Floor Plan Section. Click the Floor Plan Title Block and click Add to open up the create new Floor Pan Title Block form.

Key Fields:

• Paper Size Name: display for this title block
• Page Width: full width of the printable page
• Page Height: full height of the printable page
• Floor Plan width: the width of the area where the floor plan will be displayed
• Legend Width: width of the area where the legend will be displayed (please note the addition of value and the floor plan width must not be greater that the total page width)
• Print Margin Size: margin around the page on the printed paper

Give the title block a descriptive Name and provide the Paper Size as an Alternate Name to help users better identify this Title Block. Fill in the other fields as preferred.
