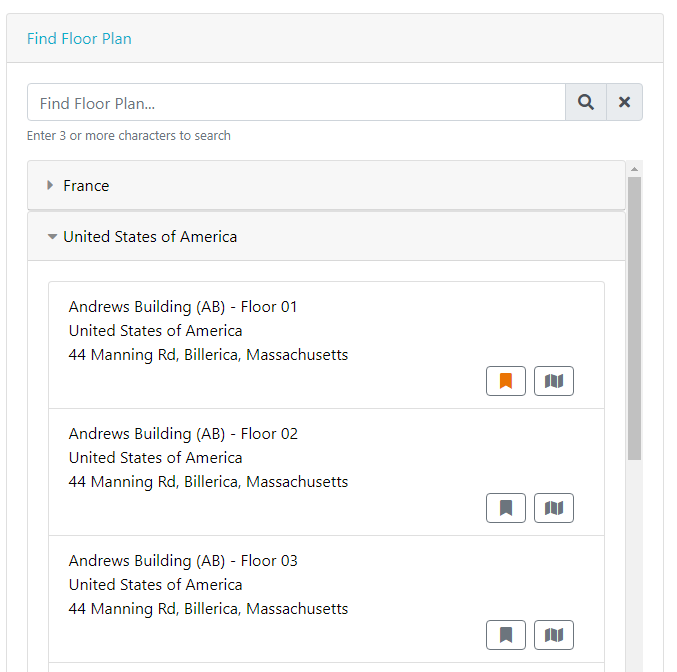

Find Floor plan

This is a search widget used to find floor plans within OSIS. Find Floor plan

Available widget parameters

Widget Parameter documentation

Allow bookmark interations for floor plan

Setting this paramter to “Yes” will show the bookmark controls when using this widget, while setting it to “No” will hide the controls.

Available parameter values are Yes (1) or No (0).

  • parameter key: show_bookmark
  • parameter default: Yes

Floorplan display Order

This parameter controls the alphabetical order in which the floor plans are listed.
Available parameter values are Ascending (asc) or Descending (desc).

  • parameter key: floorplan_order
  • parameter default: Descending

Returning Active Floor plans

This parameter specifies whether or not to display only active floor plan records initially and when a search is performed.

Available parameter values are Yes (1) or No (0).

  • parameter key: floorplan_only
  • parameter default: Yes

Viewing Floor plans

This parameter specifies how the floor plan will be displayed when selected.

Available parameter values are Stripped Only (view W/O OSIS wrapper), Stripped or Component Part.

  • parameter key: strip_type
  • parameter default: Stripped Only

Show Legend when launching Floor plans

This parameter specifies whether or not to expand the legend when lauching a floor plan from within this widget.
Available parameter values are Yes (1) or No (0).

  • parameter key: show_legend
  • parameter default: Yes

Order Floor plan list within Country dropdown

This parameter defines how the floor plans should be ordered within the country dropdown. Available parameter values are building, building_name, floor_name, where building is the building code.

  • parameter key: order_by
  • parameter default: Building

Restrict to specific countries

This parameter defines which countries to be displayed in the floor plan list. This is a comma separated string of countries as they appear in the portfolio.

  • parameter key: restricted_countries
  • parameter type: String

Restrict to specific buildings/floors

This parameter defines floor restrictions that applies to floor plans that are in this list. This is a comma separated string of location_id. To show all floors in a building, use the building location_id. Please refer to the OSIS admin Location tool to find the “Location ID” of the floors to display
Examples:

  • Select floors and all floors in a specific building: HQ-10,HQ-18,HQ-19,AB-01,SRL,…
  • Specific floors: HQ-19,HQ-18

NOTE: This restriction is only applied when building restrictions are present.

  • parameter key: restricted_locations
  • parameter type: String
