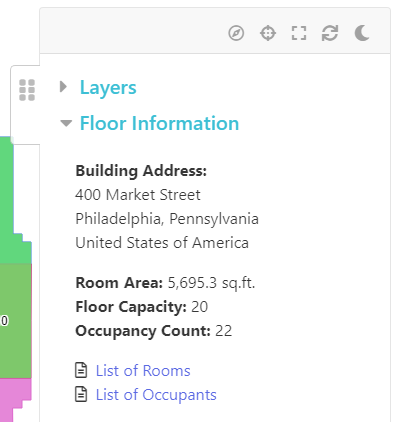

Floor Information

This widget displays information about a specific floor. It is intended to be used on a Floor plan legend.

It shows pertinent floor information including list of rooms and occupants on the floor.

Floor Information

Adding to a Layerset

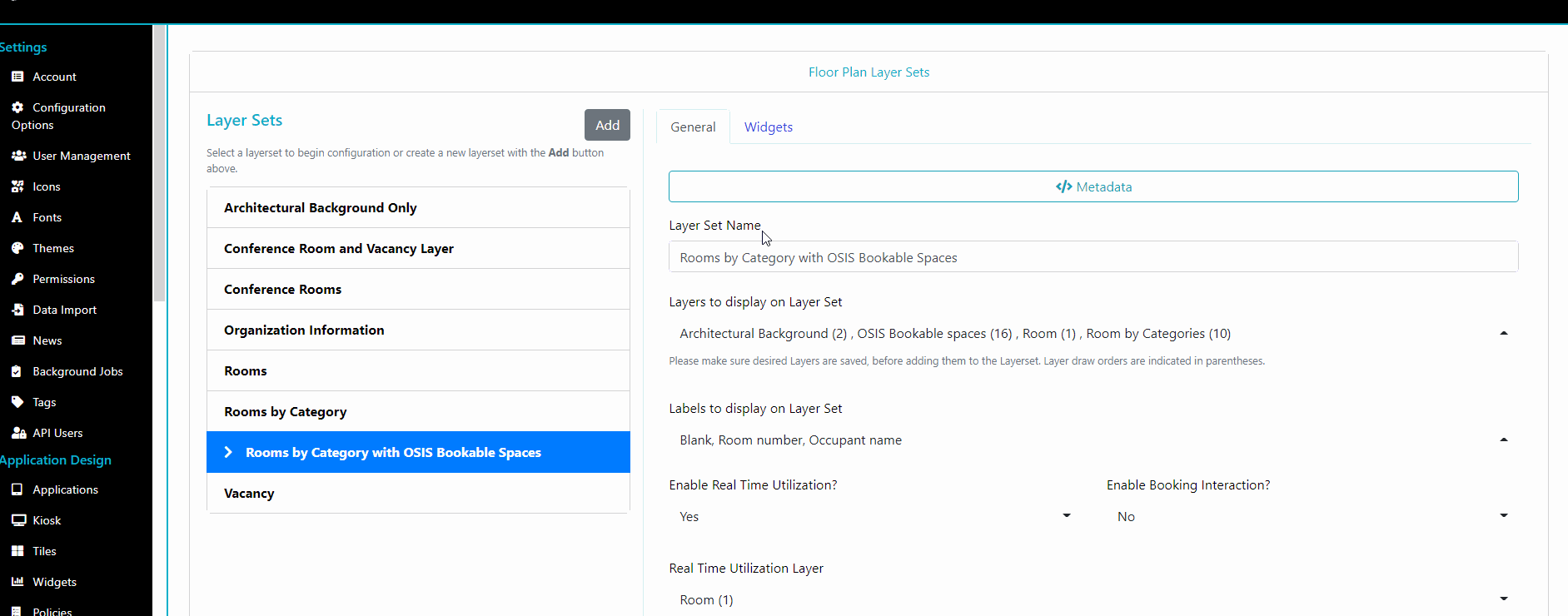

To add this widget to a Floor plan layerset, navigate to the OSIS Admin Floorplan Layerset component and proceed to the Widget tab.

Add Floor Information Widget

Available widget parameters

Widget Parameter documentation

Displaying the room area

This parameter controls the display of the total room area when the widget is in use.

Setting the parameter value to Yes will display the room area on the widget. Available parameter values are Yes (1) or No (0).

  • parameter key: show_room_area
  • parameter default: Yes

Displaying total capacity on the floor

This parameter controls whether to display the total capacity of the rooms on the floor when the widget is in use. Setting the parameter value to Yes will display the capacity on the widget. Available parameter values are Yes (1) or No (0).

  • parameter key: show_floor_cap
  • parameter default: Yes

Display occupant count

This parameter controls whether to display the total number of occupants of the rooms on the floor. Setting the parameter value to Yes will display the occupant count on the widget. Available parameter values are Yes or No.

  • parameter key: show_occupancy_count
  • parameter default: Yes

This parameter controls whether to display the link to list all rooms on the floor. Setting the parameter value to Yes will display the link to the list on the widget. Available parameter values are Yes or No.

  • parameter key: include_rooms_list_link
  • parameter default: Yes

This parameter controls whether to display the link to list all employees assigned to rooms on the floor. Setting the parameter value to Yes will display the link to the list on the widget. Available parameter values are Yes or No.

  • parameter key: include_rooms_list_link
  • parameter default: Yes
