QR Codes for Rooms

This widget is used to print out system generated QR codes for reservable rooms in the selected building and floor locations.
Note: QR codes can only be generated for a single specific building/floor combination at a time.
Reservable rooms in OSIS need to have the “flex_space” classification from the osis_bookable OSIS Master Classifications

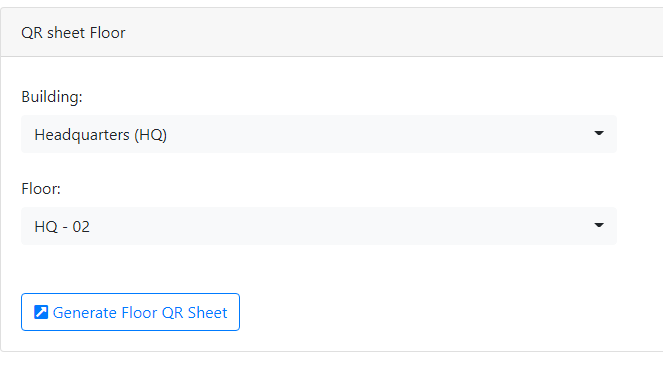

QR Sheet Floor

Available widget parameters

Widget Parameter documentation

Show the Room prefix

Setting this paramter to 1 will include the word “Room” as a prefix to the room code when the QR code is printed, while setting it to 0 will hide this prefix.

Available parameter values are 1 or 0.

  • parameter key: show_room_prefix
  • parameter default: 1
  • parameter type: Number

Show the Room name prefix

Setting this paramter to 1 will include the word “Room Name” as a prefix to the room name when the QR code is printed, while setting it to 0 will hide this prefix.

Available parameter values are 1 or 0.

  • parameter key: show_room_name_prefix
  • parameter default: 1
  • parameter type: Number

QR help text

This parameter sets the help message that accompanies the QR code.
If this parameter is not set, a default system generated message will be displayed.
Note: This has a maximum length of 250 characters.

  • parameter key: qr_help_text
  • parameter type: String

Display Room Classifications

Setting this paramter to 1 will display the specified classifications on the sheet printed, while setting it to 0 will not display any room classifications.

Available parameter values are 1 or 0.

  • parameter key: show_room_classes
  • parameter default: 0
  • parameter type: Number

Classification levels

This parameter defines which classifications by level to be included as part of the room information printed. This is a comma separated string of classification levels as they appear in the portfolio.
Note: The “show_room_classes” parameter has to be set to 1 for these classifications to be displayed. All available classifications in the specified levels will be displayed for each room.

  • parameter key: class_levels
  • parameter type: String
